Kothari Drones

About Kothari Drones

Kothari Geospatial provides professional geospatial services with a commitment to the highest ethical and technical standards. We recognize that each client’s needs are unique, yet all require timely, technically sound, and cost-effective solutions. Our standard practice is to collaborate closely with clients to clearly define project scope and requirements, ensuring the development of solutions that hit the mark. At Kothari Geospatial, we are dedicated to delivering innovative geospatial solutions that make a positive impact.

Digital photogrammetry

Kothari Industrial Corporation Limited has been delivering Digital Photogrammetric solutions through a technically skilled team based in Chennai and across India. Over the years, we have been at the forefront of technological advancements, playing a key role in driving innovation. Our derived products undergo rigorous quality control procedures to ensure exceptional standards. All digital photogrammetry services are executed using advanced softcopy workstations equipped with the latest, proven software tools.
READ MORE
LiDar Service

LiDAR is a remote sensing technology that measures distances by illuminating a target with laser light and analyzing the reflected signals. It operates similarly to sonar technology, which is used to detect objects underwater—commonly by fish or in marine navigation. Airplanes and helicopters are the most frequently used platforms for acquiring LiDAR data across large areas. Kothari Industrial Corporation Limited offers comprehensive, turn-key LiDAR image processing services, delivering accurate and efficient geospatial solutions.
READ MORE
Ortho Service

Orthorectification is the process of eliminating image distortions caused by terrain relief and camera perspective. This is achieved by modeling the nature and magnitude of geometric distortions present in the imagery. Using camera or satellite models along with minimal ground control data, correction formulas are developed to produce accurate, geometrically corrected, map-oriented images. Kothari Industrial Corporation Limited utilizes the Leica Photogrammetric Suite to generate high-quality orthoimages.
READ MORE
GIS Service

Kothari Industrial Corporation Limited offers comprehensive GIS Mapping Services and GIS Data Conversion Services. Our GIS solutions enable the visualization of geographic data, analysis of spatial relationships, and efficient data management. GIS data conversions integrate data from various sources into a unified format, ensuring seamless access, analysis, and application. Using either paper-based or electronic data—captured by clients or collected independently—Kothari Industrial Corporation Limited performs GIS data conversions and creates accurate digital maps using advanced Geographic Information Systems (GIS) technology. While delivering GIS Mapping Services, we uphold the highest standards of quality, accuracy, and consistency to support informed decision-making.
READ MORE
CAD Service

Kothari Industrial Corporation Limited offers a wide range of CAD services, including large-scale 2D and 3D CAD drafting, paper-to-CAD conversion, and raster-to-vector conversion for various types of technical drawings. These include engineering drawings, architectural and facility layouts, contour maps, ground cadastre plans, and utility distribution network maps for electric, gas, water, sewage, and telecom infrastructure.
READ MORE

30.0 kg

Max All-Up Weight

10 Litres

Tank Capacity

Hexacopter

Six-Rotor RPAS

22,000 mAh

Battery Capacity

7.0 m/s

Maximum Speed

1.005 km

Maximum Range

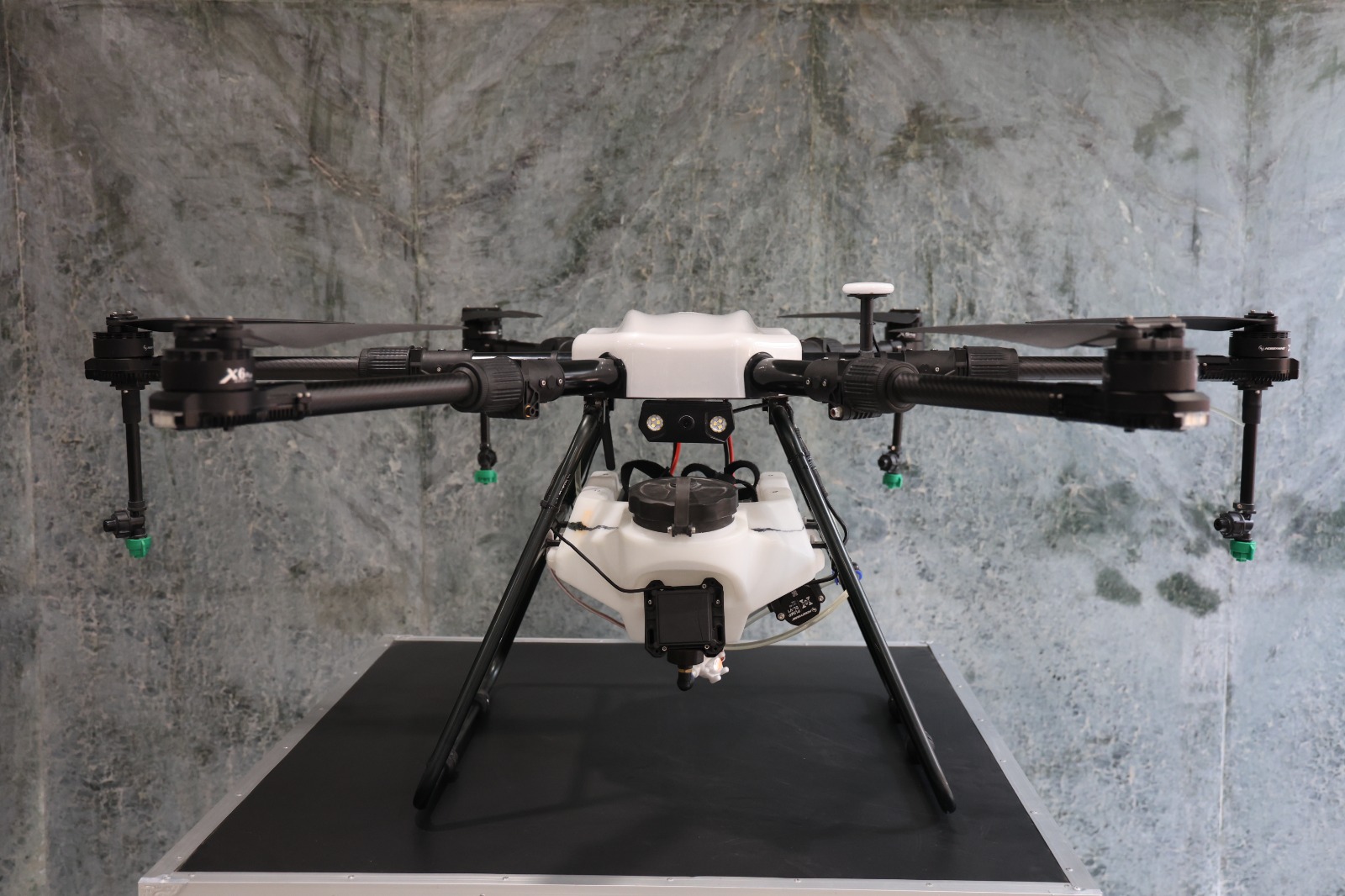

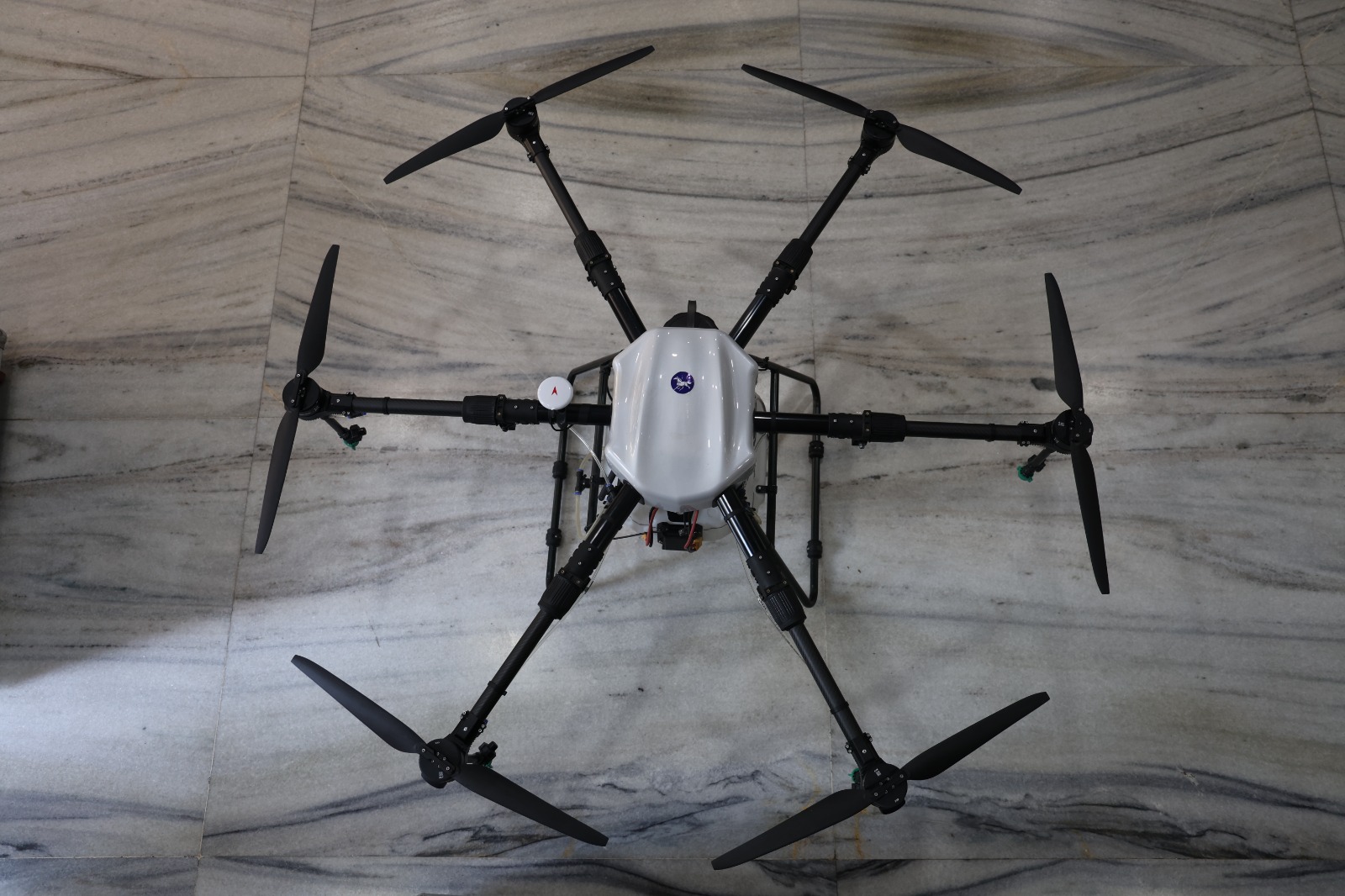

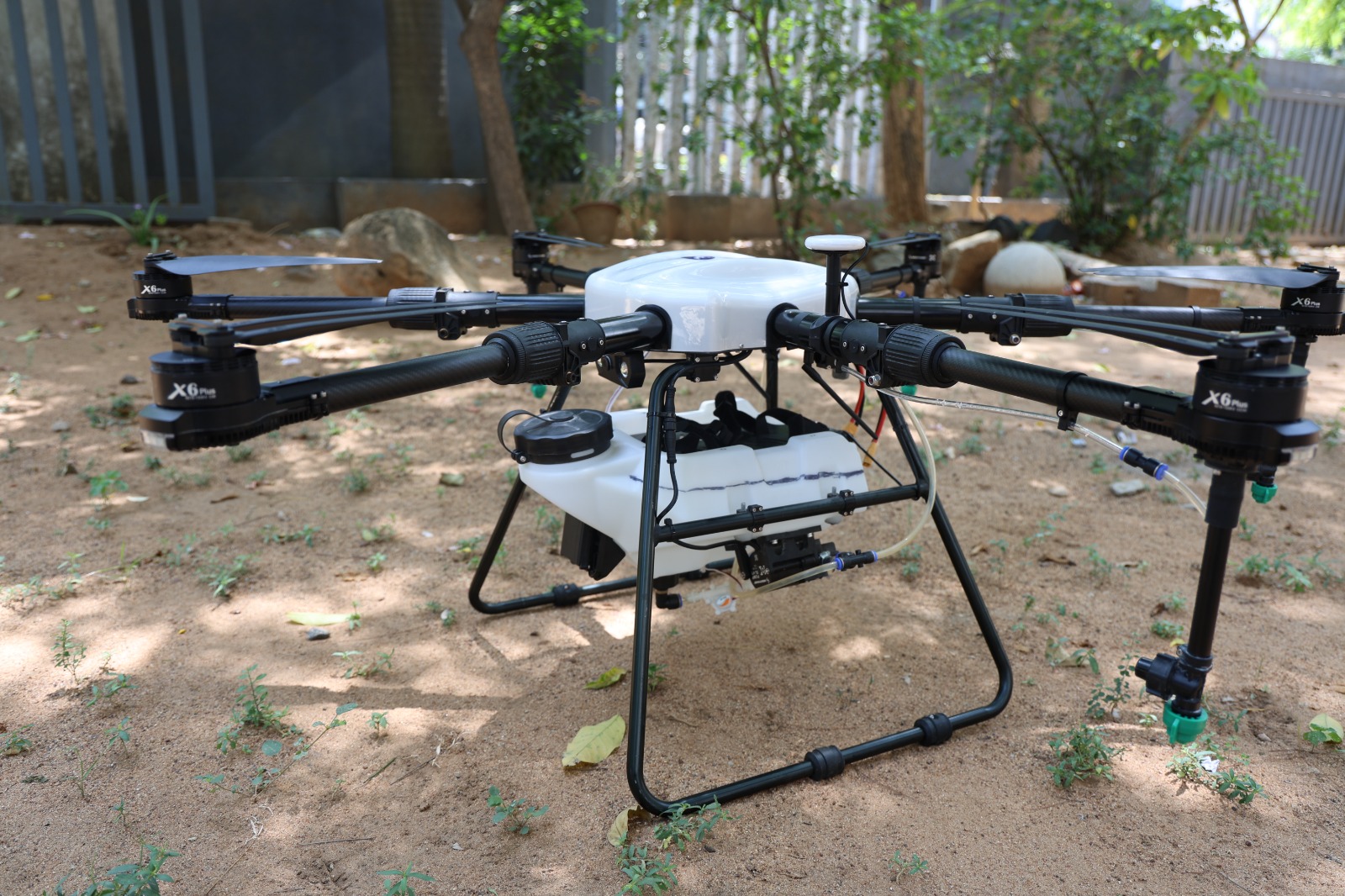

Sl. No.	Parameter	Specification
A	GENERAL UAS PARTICULARS
A.1	Manufacturer	M/s Kothari Industrial Corporation Limited
A.2	UAS model name	KOAIR-10L Drone
A.3	Category	Rotorcraft
A.4	Sub-category	RPAS
A.5	Class	Medium
A.6	Drone configuration	Six-rotor hexacopter
A.7	Maximum all-up weight (including payload)	30.0 kg
A.8	Overall dimensions (L × B × H)	2055 × 1902 × 600 mm
B	PAYLOAD AND SPRAYING SYSTEM
B.1	Intended application	Agricultural spraying
B.2	Payload configuration	4 flat-fan nozzles with 10-litre tank capacity
B.3	Maximum tank capacity	10 litres
B.4	Variable load / consumables	Pesticides, fertilizers and plant nutrients (agrochemicals)
C	PROPULSION, BATTERY AND PROPELLERS
C.1	Number of motors	6
C.2	Motor power rating	2382 W
C.3	Battery capacity	22,000 mAh
C.4	Maximum battery temperature	60°C
C.5	Propeller model	Hobbywing X6 Plus
C.6	Number of propellers	6
C.7	Propeller diameter × pitch	24 inches × 8 inches
C.8	Propeller type	Fixed pitch
C.9	Maximum propeller RPM	5440 RPM
D	FLIGHT CONTROL AND SAFETY EQUIPMENT
D.1	GNSS	Applicable
D.2	Flight Control Module	Applicable
D.3	Autonomous Flight Termination System	Applicable
D.4	Return Home (RH)	Applicable
D.5	Geo-fencing capability	Applicable
D.6	Detect and Avoid capability	Applicable
D.7	Flashing anti-collision strobe light	Applicable
E	REMOTE PILOT STATION AND C2 LINK
E.1	Ground Control Station model	AGS Ground Control Station (AGS)
E.2	GCS application version	AGS 2.5.2.42
E.3	C2 link equipment	SIYI MK 15
E.4	Frequency band	5.745–5.825 GHz
E.5	WPC Wing, DoT ETA reference	ETA-SD-20260201643
E.6	ETA issue date	19 February 2026
F	PERFORMANCE
F.1	Maximum endurance at MTOW (without dispensing)	12 minutes 39 seconds
F.2	Maximum endurance with empty tank	23 minutes 36 seconds
F.3	Maximum range	1.005 km
F.4	Maximum speed	7.0 m/s
F.5	Maximum attainable / ceiling height	164 ft
F.6	Operating altitude	164 ft
F.7	Operational envelope	VLOS (Day / Night)

KOTHARI INDUSTRIAL CORPORATION LTD

Overview

Areas of work

Investors

Newsroom

Kothari Drones & Geo Spatial

Kothari Industrial Corporation Ltd. (KICL) is leading the way with its advanced Drone & Geospatial division.

About Kothari Drones

Digital photogrammetry

LiDar Service

Ortho Service

GIS Service

CAD Service

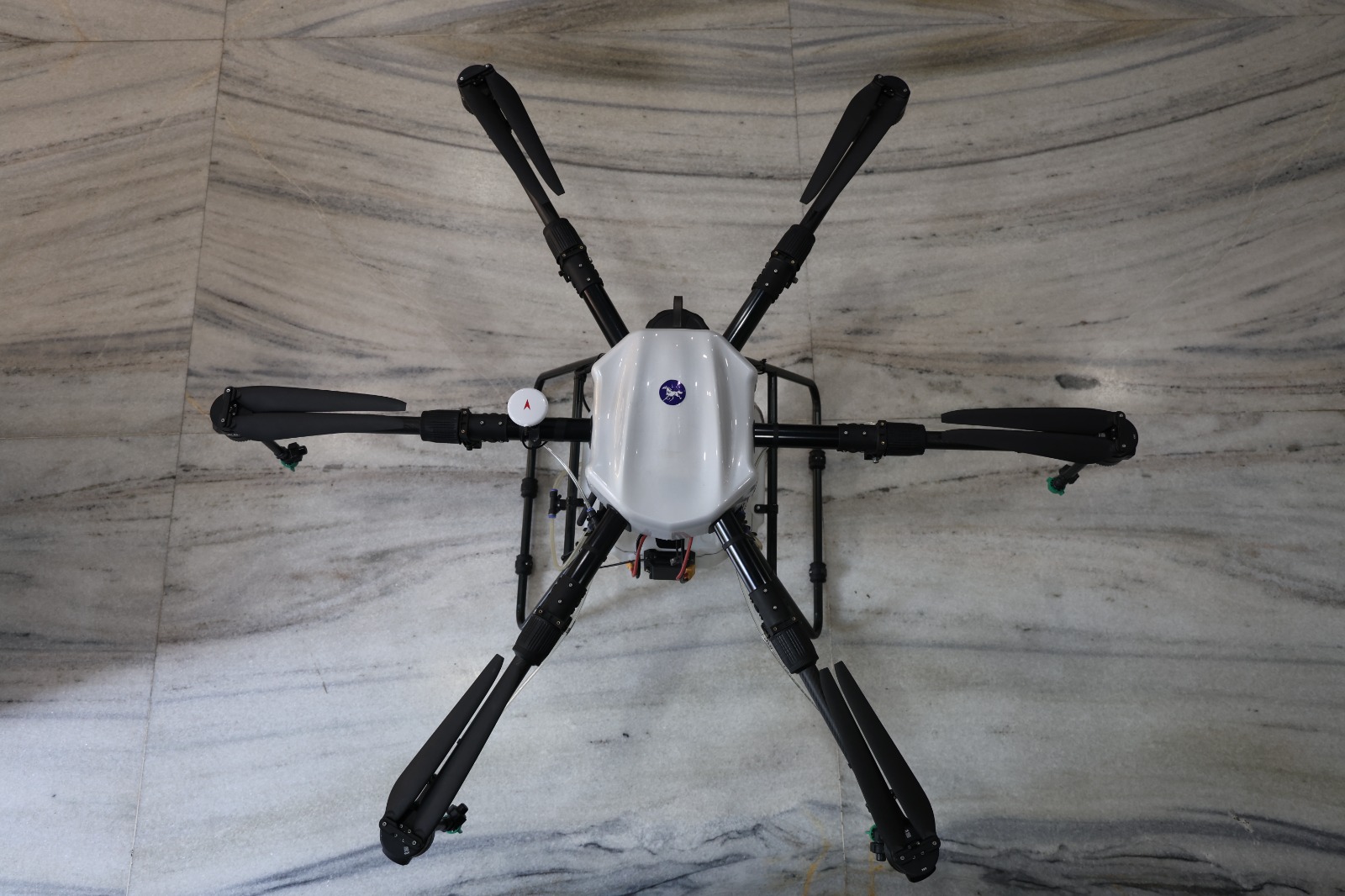

KOAIR-10L Agricultural Spraying Drone
